Cảm biến dò khí Teledyne

Cảm biến dò khí Teledyne

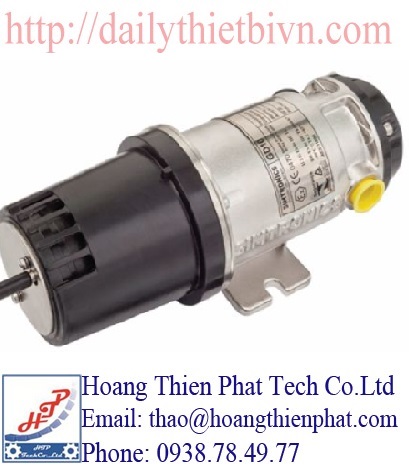

Cảm biến dò khí Teledyne (như GD10P CO₂ bạn gửi) là thiết bị an toàn công nghiệp, có nhiệm vụ chính:

Phát hiện rò rỉ khí

Liên tục đo nồng độ khí trong không khí (CO₂, gas, hydrocarbon…)

Khi có rò rỉ khí, nó phát hiện ngay lập tức

Giúp tránh:

Ngạt khí

Cháy nổ (với khí dễ cháy)

Ô nhiễm môi trường

Cảnh báo nguy hiểm

Khi khí vượt ngưỡng → thiết bị sẽ:

Báo còi / đèn 🚨

Gửi tín hiệu về hệ thống điều khiển (PLC/DCS)

Kích hoạt:

Quạt thông gió

Ngắt hệ thống

Báo động toàn khu vực

Giám sát an toàn 24/7

Hoạt động liên tục, không cần người theo dõi

Truyền tín hiệu về phòng điều khiển

Là một phần của hệ thống an toàn (Safety System / Gas Detection System)

Ứng dụng thực tế

Thiết bị này thường dùng trong:

Lò hơi, đầu đốt

Nhà máy hóa chất

Dầu khí, LPG

Kho lạnh, thực phẩm (CO₂) ❄️

Một số model về Cảm biến dò khí Teledyne

Order Information

	ATEX / IECEx Approved
GD10-P00-23AN-0XH-00	GD10P CO2, Carbon dioxide 10,000 ppm, SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2841)
GD10-P00-23BH-0XH-00	GD10P CO2, Carbon dioxide 3% Vol., SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2845)
GD10-P00-23BC-0XH-00	GD10P CO2, Carbon dioxide 5% Vol., SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2901)
GD10-P00-23BD-0XH-00	GD10P CO2, Carbon dioxide 10% Vol., SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2934)
GD10-P00-23BJ-0XH-00	GD10P CO2, Carbon dioxide 25% Vol., SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2956)
GD10-P00-24BC-0XH-00	GD10P CO2, Carbon dioxide 5% Vol. (CH4, immune), SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2859)
GD10-P00-24BG-0XH-00	GD10P CO2, Carbon dioxide 100% Vol. (CH4, immune), SS 316L, ATEX, IECEx, 4-20mA, source, HART (Config 2909)
	CSA Approved
GD10-P00-23AN-0BH-00	GD10P CO2, Carbon dioxide 10,000 ppm, SS 316L, CSA, 4-20mA, source, HART
GD10-P00-23BH-0BH-00	GD10P CO2, Carbon dioxide 3% Vol., SS 316L, CSA, 4-20mA, source, HART
GD10-P00-23BC-0BH-00	GD10P CO2, Carbon dioxide 5% Vol., SS 316L, CSA, 4-20mA, source, HART (Config 3018)
GD10-P00-23BD-0BH-00	GD10P CO2, Carbon dioxide 10% Vol., SS 316L, CSA, 4-20mA, source, HART
GD10-P00-23BJ-0BH-00	GD10P CO2, Carbon dioxide 25% Vol., SS 316L, CSA, 4-20mA, source, HART
GD10-P00-24BC-0BH-00	GD10P CO2, Carbon dioxide 5% Vol. (CH4, immune), SS 316L, CSA, 4-20mA, source, HART (Config 2975)
GD10-P00-24BG-0BH-00	GD10P CO2, Carbon dioxide 100% Vol. (CH4, immune), SS 316L, CSA, 4-20mA, source, HART
	UL Approved
GD10-P00-23AN-0CH-00	GD10P CO2, Carbon dioxide 10,000 ppm, SS 316L, UL, 4-20mA, source, HART
GD10-P00-23BH-0CH-00	GD10P CO2, Carbon dioxide 3% Vol., SS 316L, UL, 4-20mA, source, HART
GD10-P00-23BC-0CH-00	GD10P CO2, Carbon dioxide 5% Vol., SS 316L, UL, 4-20mA, source, HART
GD10-P00-23BD-0CH-00	GD10P CO2, Carbon dioxide 10% Vol., SS 316L, UL, 4-20mA, source, HART
GD10-P00-23BJ-0CH-00	GD10P CO2, Carbon dioxide 25% Vol., SS 316L, UL, 4-20mA, source, HART
GD10-P00-24BC-0CH-00	GD10P CO2, Carbon dioxide 5% Vol. (CH4, immune), SS 316L, UL, 4-20mA, source, HART
GD10-P00-24BG-0CH-00	GD10P CO2, Carbon dioxide 100% Vol. (CH4, immune), SS 316L, UL, 4-20mA, source, HART
	Accessories
	Bracket
499-811176	Adapter plate
599-811547	Adapter plate, footprint conversion GD100-GD10P
	Installation
AS053-X	SS316L mounting plate for DM/DMI/DG/DGI/GD10 (Add U-bolts ref. AS057-X or AS058-X)
AS057-X	2 x SS316 U-bolts for 2″ pipe
AS058-X	2 x SS316 U-bolts for 2.5″ pipe
AS049	Wall-mounting adapter plate BT05 (EX05 series) / BT606 (DM/DMi series) / BT10
499-811938	Duct mounting kit
499-816867	Pipe mounting plate, kit, M8x2,5″ A4 (for 2″ pole)
AS052	Fixing sling
AS034-X	Measuring chamber flow for sampling applications
499-816816	TAG 1x80x20mm, SS 316, CUSTOM TEXT, including washer and split ring (for GD10)
499-816915	TAG 1x75x30mm, SS 316 CUSTOM TEXT, including washer and split ring (for GD10)
AS215	Detector stainless steel tag plate (2x80x40mm) SS 316, CUSTOM TEXT
6343489	Cable-gland kit, M20, stainless steel, for armoured cable
6343493	Cable-gland kit, M20, stainless steel, for unarmoured cable
6343495	Cable-gland kit, M20, nickelled brass, for armoured cable
6343499	Cable-gland kit, M20, nickelled brass, for unarmoured cable
	Protection
499-813397	Mosquito net, steel mesh
499-815712	Sunshade
599-816841	Sunshade, vertical mounting (pipe mounting plate, kit required)
	Maintenance
599-818154	Gas test socket GD10P
499-810874	Sample flow housing for GD10P. This is also used for testing / Calibration check
140-816580	Hand-held terminal for GD10P & GD10PE. Special tool – subject to training. Supplied in a carrying case. RS-485 connection, not HART
TLU600	IS Infra Red Remote Control Unit with a battery charger
TLH710	HART Remote Control Unit with a battery charger
TLH720	IS HART Remote Control Unit with a battery charger
	Display
GD10P-DISPLAY-A-ATEX	Field-mounted loop-powered indicator with Membrane Switches, Copper-free aluminium, Blue epoxy-painted, ATEX, IECEx, IP68, 3xM20 entries, supplied with 1 stopping plug.
GD10P-DISPLAY-A-CSA	Field-mounted loop-powered indicator with Membrane Switches, Copper-free aluminium, Blue epoxy-painted, CSA, NEMA4X, 3×3/4NPT entries, supplied with 1 stopping plug.
GD10P-DISPLAY-X-ATEX	Field-mounted loop-powered indicator with Membrane Switches, Stainless steel, ATEX, IECEx, IP68, 3xM20 entries, supplied with 1 stopping plug.
GD10P-DISPLAY-X-CSA	Field Mounted Loop Powered Indicator with Membrane Switches, SS316, CSA, NEMA4X, 3×3/4NPT entries, supplied with 1 stopping plug.
B105507	EX plug stopping ATEX/IECEx/FM, SS316, M20x150 for GD10p-Display-xx-ATEX
B105508	EX plug stopping ATEX/IECEx/FM, SS316, 3/4″NPT for GD10p-Display-xx-CSA
6125305	Mounting bracket 175MM for GD10P-DISPLAY
	GD10P Display Modules: accept 4-20 mA signal from GD10P or other Teledyne gas
R-5000AL-2	Display Module, Aluminium Enclosure
R-5000ALR-2	Display Module with Relays, Aluminium Enclosure
R-5000SS-2	Display Module, Stainless Steel Enclosure
R-5000SSR-2	Display Module with Relays, Stainless Steel Enclosure
899-M20075-BNP	M20 male to 3/4 NPT male Adaptor, nickel-plated brass
899-M20075-MSS	M20 male to 3/4 NPT male Adaptor, stainless steel
	Spares
373-901337	Terminal GD10P/PE/L 4-5
373-903947	Terminal GD10P/PE/L 1-3
499-810913	Standard front cover. Weather Protection, GD10P
499-816584	Back cover, kit GD10P/PE/L
540-903951	Ring Sealing (Ø58×3) for Sample flow GD10P
540-903952	Ring Sealing (Ø60×3) for Sample flow GD10PE
540-903954	Ring Sealing (Ø65×2) for Back cover GD10P/PE/L
541-903950	Ex plug stopping M20
599-810646	Test nipple, GD10P
599-811937	Test nipple for GD10P Duct mount
599-904176	Protective Cap for test nipple GD10P/PE
